800W Wind Solar Hybrid System for Mobile Home:400W Wind Turbine Genera

800W Wind Solar Hybrid System for Mobile Home:400W Wind Turbine Generator/4pcs 100W etfe Flexible Solar Panels Monocrystalline/40A Charge Controller/Cable/Connector

$256.41 $685.00

NOTES:

1.Please tell us you need 12V/24V System, so we can decide to ship 12V/24V Wind turbine generator.

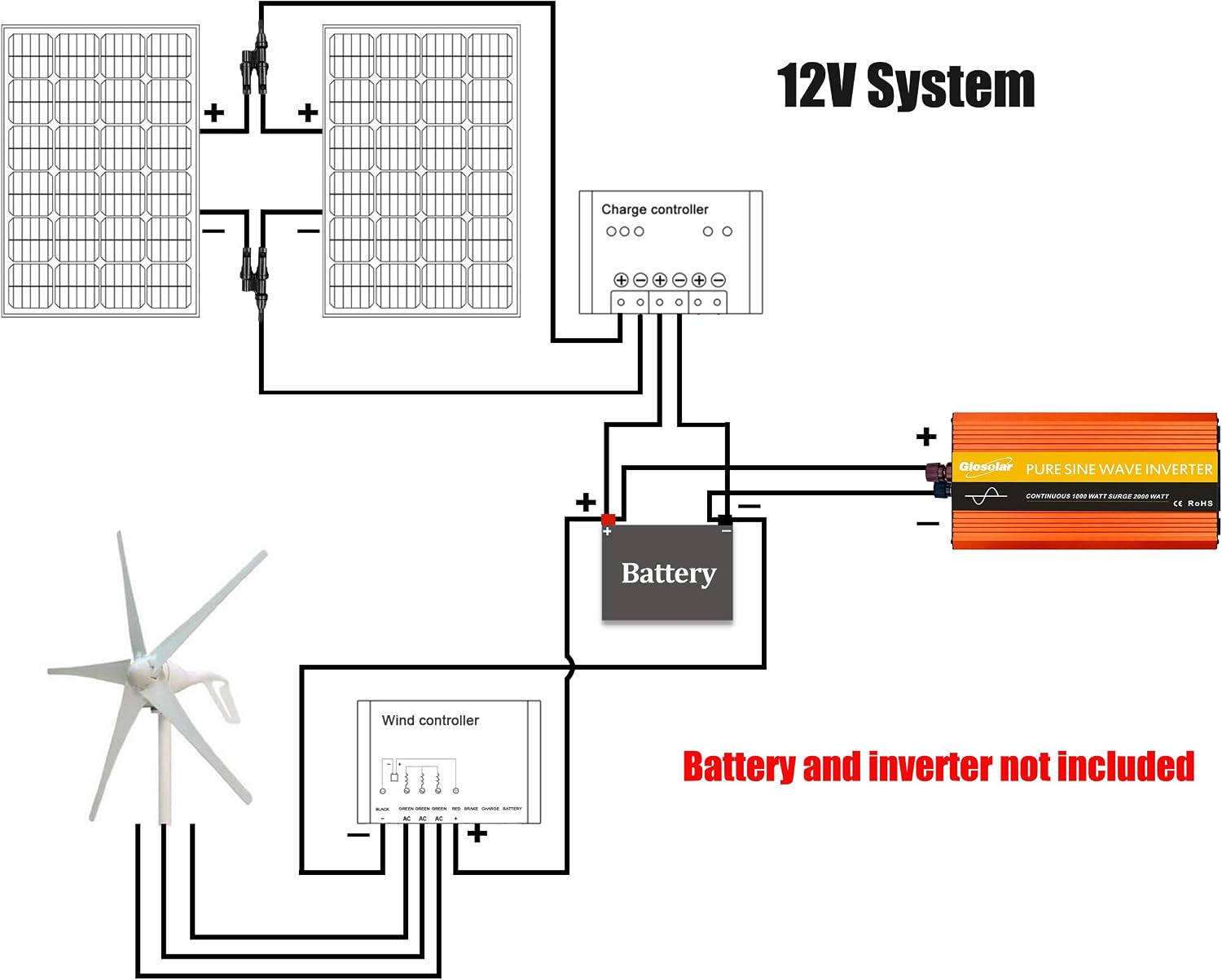

2.The controller is 12V/24V autodetect, please connect the battery to the controller firstly, and then connect the solar panel and wind turbine with the controller

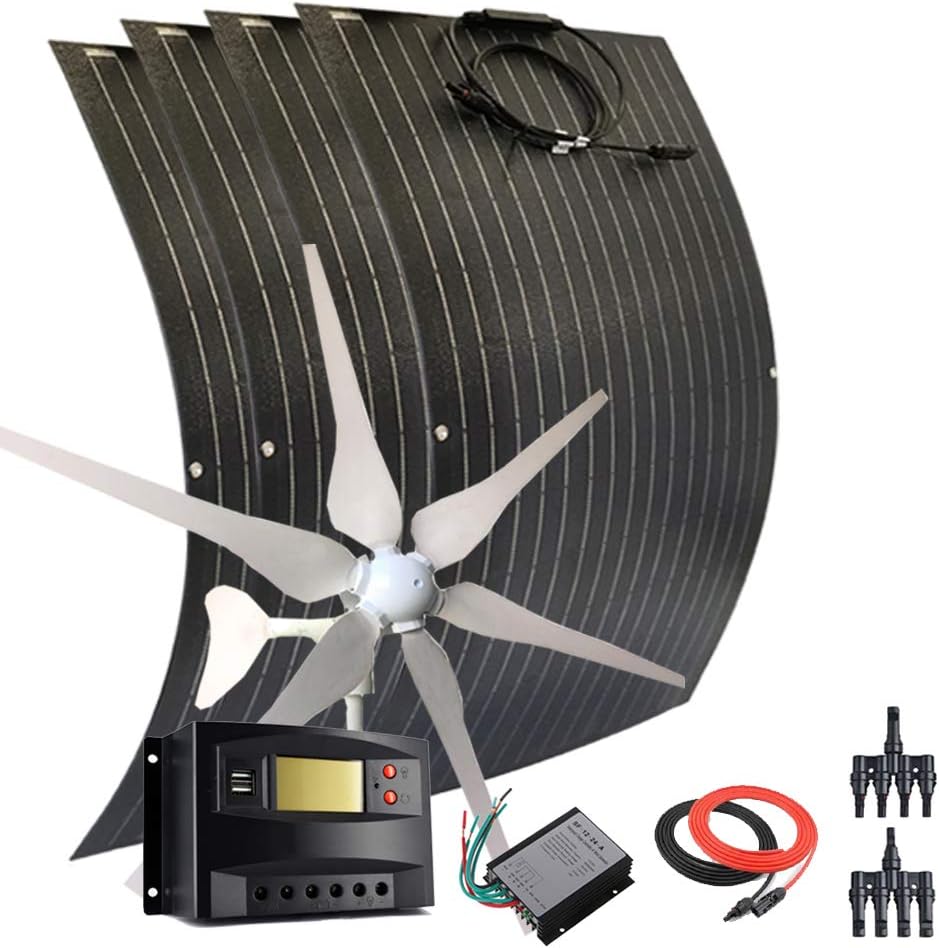

The Giosolar 800W Solar Wind kit includes:

- 4x 100W ETFE Flexible Mono solar panel attached with 90mm of solar cable and waterproof connectors
- 1x 400W Wind Turbine Generator
- 1x PWM 40A 12V/24V Solar Charge Controller
- 1x 12V/24V Wind Charge Controller
- 1x 5M solar cable with connectors ( Red about 2.5M, Black about 2.5M)
- 1 Set of Y Branch Connectors

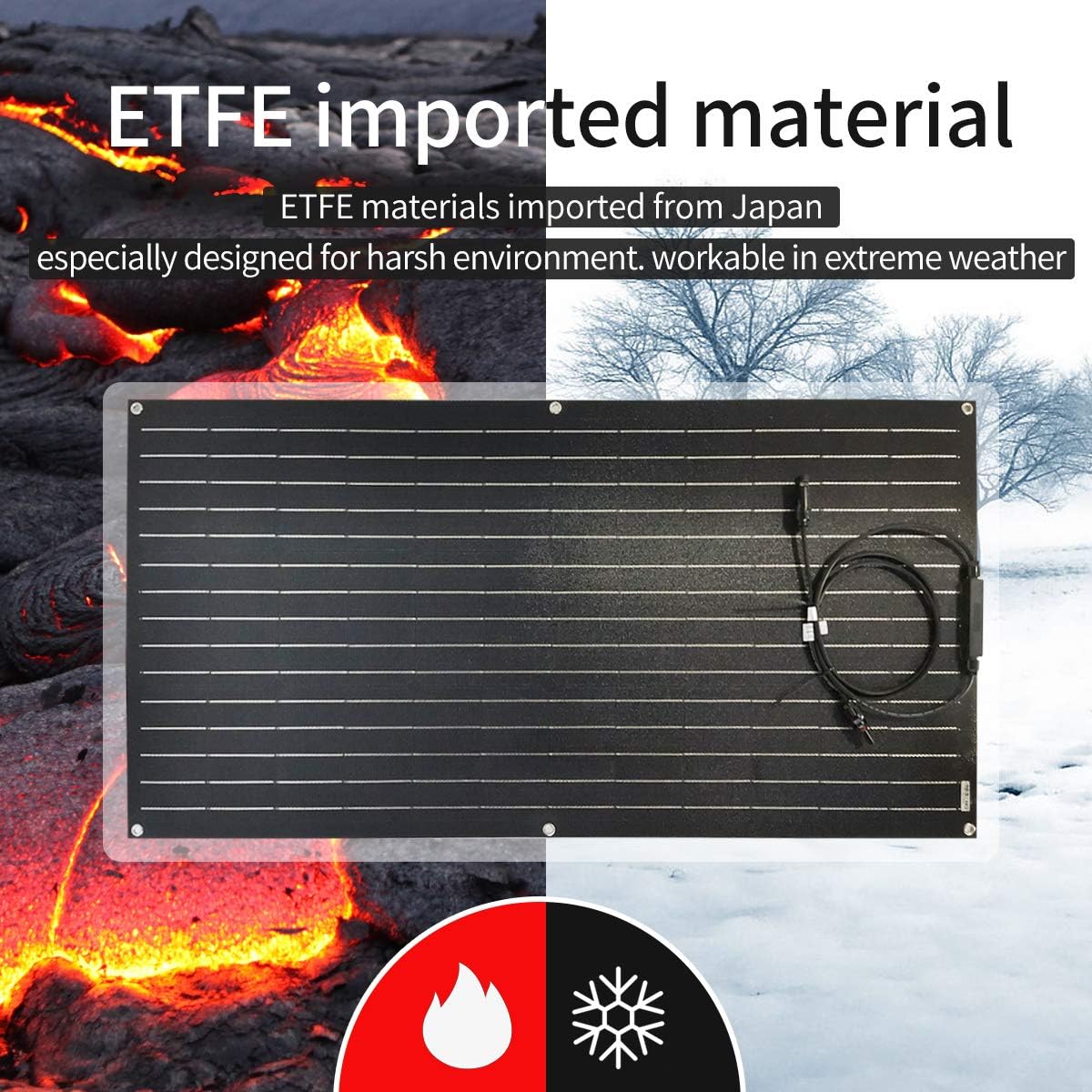

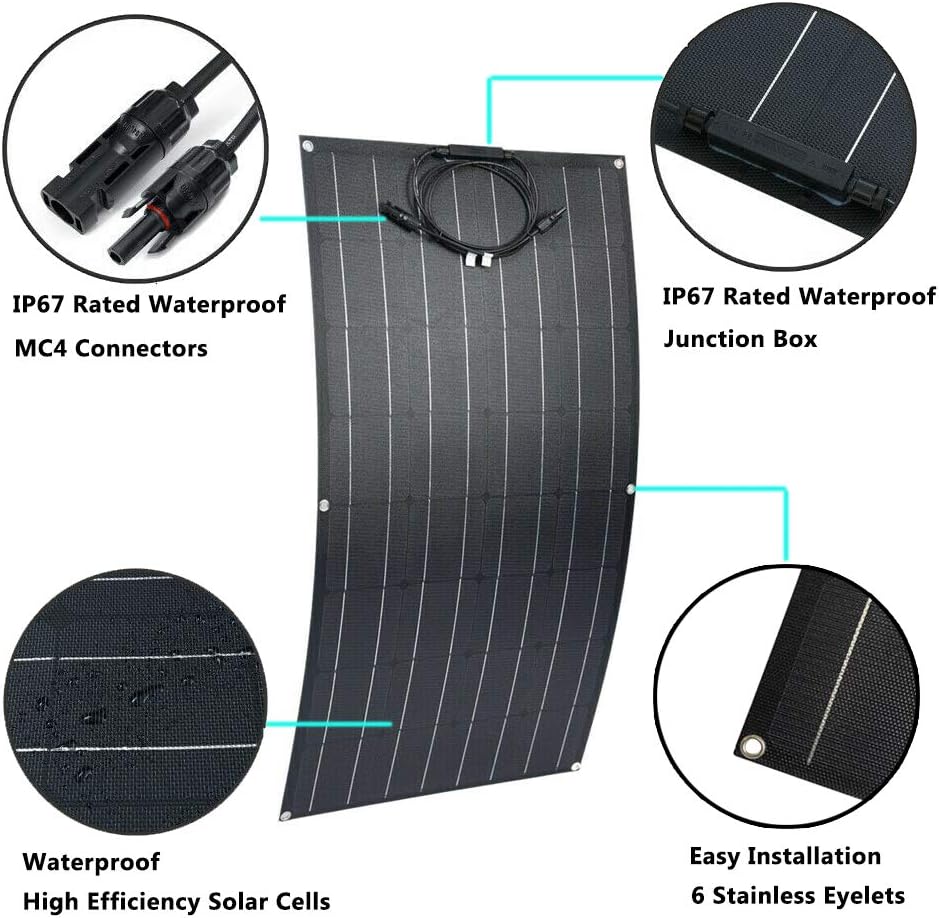

100W ETFE Flexible Monocrystalline Solar Panel Specifications:

- Maximum Power: 100W
- Optimum Operating Voltage (Vmp): 17.5 V
- Open-Circuit Voltage (Voc):21 V
- Optimum Operating Current (Imp): 5.72 A
- Short-Circuit Current (Isc): 6.22 A
- Weight: 1.85KG/4.1LBS
- Dimensions:1050*540*2.5mm
- 90cm of special cable with connectors attached

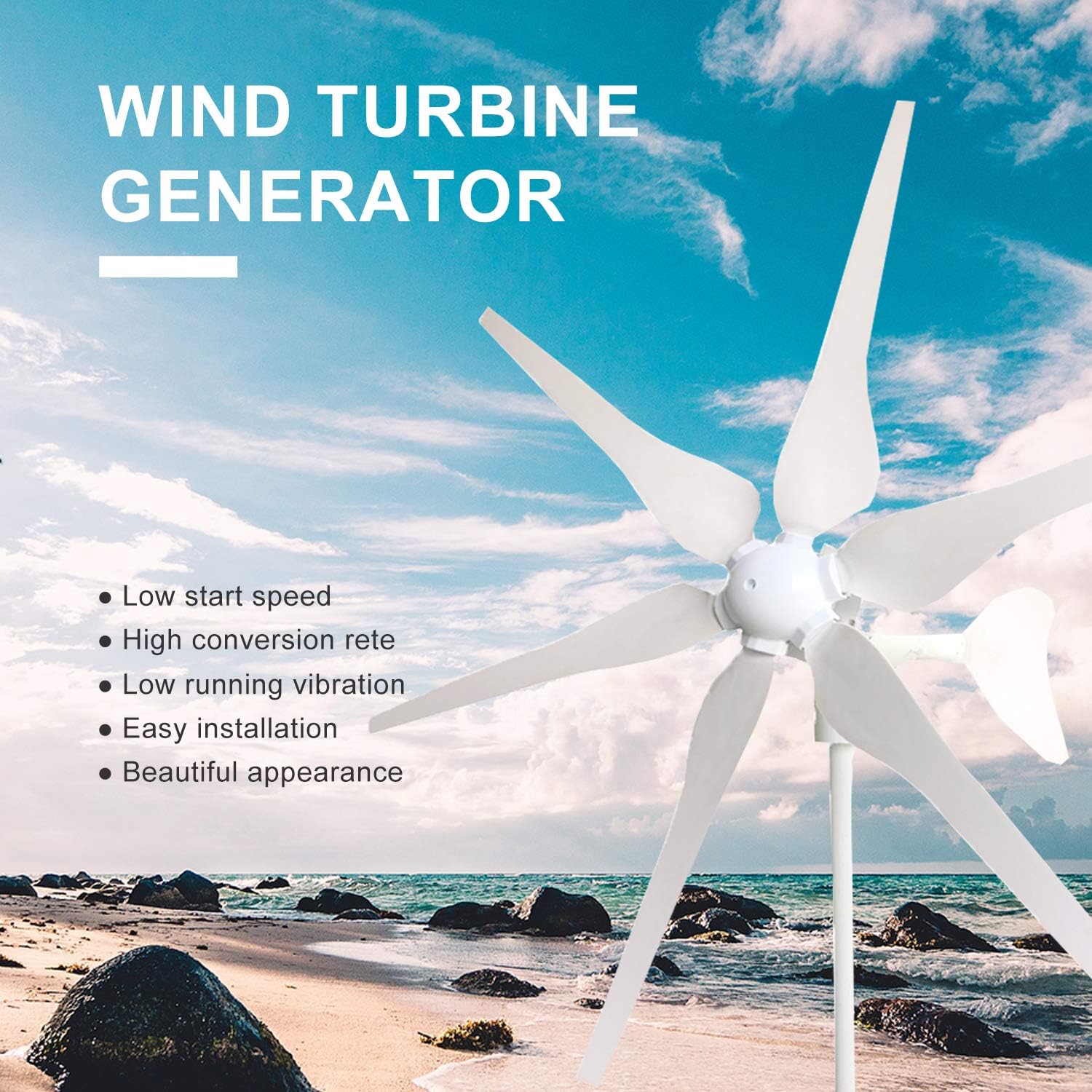

400W Wind Turbine Specification:

Nominal Voltage: DC 12-24V
Cut-in Wind Speed: 2.5m/s
Rated wind speed: 10.5m/s
Maximum Wind speed:35m/s
Rotor diameter: 1.2M
Tower diameter: Suggest more than 48mm
Altutude of towe: 4.5M-10M
Net weight: 17.64Ibs (8kg)
